Determining Resistance: Dynamic Footrests – Update

This blog was originally posted in February 2018. We are posting this update with some new information and recommendations!

Seating Dynamics Dynamic Footrests can move in up to 3 directions. First, the footrests can telescope, allowing movement downward. Second, the footrests can elevate, allowing the knee to extend and the foot to move forward. Third, the footplate can move into plantar and dorsi flexion, allowing ankle movement.

How is Resistance changed on the Dynamic Footrests?

The telescoping feature provides up to 1.5” of movement and is adjusted by changing a spring. The installed default spring is Blue, which responds to 40 lbs. of force. Yellow (20 lbs.) and Green (60 lbs.) are also included in the package.

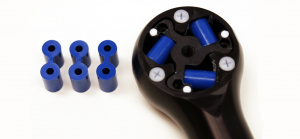

Seating-Dynamics-Blog-54-Dynamic-Footrest-ElastomersResistance of the knee extension feature cannot be changed at this time, though Seating Dynamics has recently changed to a firmer elastomer to improve durability. Three Blue (Firm), dog bone shaped elastomers are installed and can be changed out if worn.

The plantar and dorsi flexion resistance cannot be changed at this time. Blue (Firm) elastomers provide up to 10 degrees of movement in either direction. These can be changed out if worn.

Determining Resistance and Replacement

So how do I determine if the resistance needs to be changed to best meet an individual’s needs?

To determine the optimal spring for the telescoping movement, watch the client as extension occurs. If no telescoping movement occurs, a softer spring may be indicated. If the client extends, leading to the dynamic footrest telescoping, but does not readily return to a starting position, a firmer spring may be required. If the client moves with different force on either side of their body, different springs can be used in each dynamic footrest, as well. These springs are quite durable and generally do not require replacement for wear and tear.

The resistance of the knee extension feature cannot be changed, however these elastomers can wear out. The resistance should be checked at least once a year. If the client is moving into knee extension too readily, the elastomers most likely need to be replaced. The caregiver can lift a new dynamic footrest into knee extension, without the weight of a foot on it, to get a feel for the resistance and smoothness of operation. This check can be performed routinely, as often as monthly, to assess condition – if the footrest is not moving smoothly and demonstrating consistent resistance, service and elastomer replacement is likely required.

The resistance of the plantar and dorsi flexion feature cannot be changed, however these elastomers can wear out. The resistance should be checked at least once a year. If the client is moving into plantar or dorsi flexion too readily or not returning to a starting position, the elastomers most likely need to be replaced.

Please see the following document for the Dynamic Footrest assembly and adjustment:

https://www.seatingdynamics.com/wp-content/uploads/2017/10/Dynamic-Elevating-Telescoping-Footrest-101017.pdf

Please contact us if you need to replace elastomers, and we can help you get what you need and walk you through the process.
